Lifan 125cc Semi Auto Engine Motor Kit W/Wiring Harness for Kick or Electric Start Dirt Pit Bike Mini Trail CT70 CT90 CT110 Z50 ATC70 CS90 SL90 XR70 CRF50 SSR Taotao DB14 DB17 XR CRF 50 70

Specifications: Type: 1-cylinder, horizontal, 4-stroke, air-cooled electric and kick start Bore x Stroke: 52.4mm x 55.5mm Displacement: 120ml Max. Power & Corresponding Speed: 5.8KW/7500rpm±375rpm Max. Torque & Corresponding Speed: 8.5N.m/5000rpm±250rpm Min. Fuel Consumption: <367g/KW.h Pollutant Index: =5.5 g/km (CO), =1.2g/km (HC) 0.23g/km(NOx) Clutch Type: Centrifugal friction clutch Semi Auto Start Mode: electric or kick start Compression: 9.0:10 Gear ratio: 2.833/1.706/1.238/0.958 Ignition type and spark plug model: CDI, A7TC Advance angle of ignition: 15°±1°/1500r/min Starting performance: ≤15s Valve clearance： 0.05mm Carburetor type: PZ20 Total lubricating oil capacity: 900mL Lubricating mode and type of lubricating oil pump: pressure and Splash, Internal and external rotor type Dimensions: 470×275×280mm (18.5x10.8x11 inch) Engine Oil: 900ml, 15W/40-SE, 4 stroke Gears: 0-1-2-3-4 4 Up Sprocket: 15T 428 CHAIN 20MM Shaft: 20mm Weight: 23kgInstructions: 1.Check the oil level with a dipstick. If the oil level is lower than the lower cut line of the dipstick, add lubricating oil to the upper cut line . 2. Do not increase the load in the cooling machine, must preheat the engine 1 to 3 minutes in advance. 3. The break-in of the engine is very important. In a new engine within 650miles, the throttle should never be fully open and the gear should be changed at any time.Poor break-in leads to more faults. During break-in, the engine oil should be changed every 185 miles or so;After travelling 210 miles, an adjustment should be made to compensate for the slight wear during the break-in period, so as to ensure the good performance of the engine and extend its service life.For specific break-in requirements, refer to the instructions. 4. Idle adjustment (1) Twist the idle screw clockwise completely into place, and then reverse 1 5/8 turn. (2) Preheat the starting engine to the working temperature, and adjust the idle speed to 1500r/min±100r/min with the fixing screw of the oil door plunger. (3) Then turn the idle fine-tuning screw to achieve the maximum steady speed of the engine, and then re-adjust the locking screw with the oil door plunger to the specified 1500r/min±100r/min. 5. Use of electric starting: It is advisable to use electric starting in neutral.If electric starting is used in other gears, braking must be applied simultaneously. If the battery power is not enough, just drive a few miles battery after automatic charging, can be used.

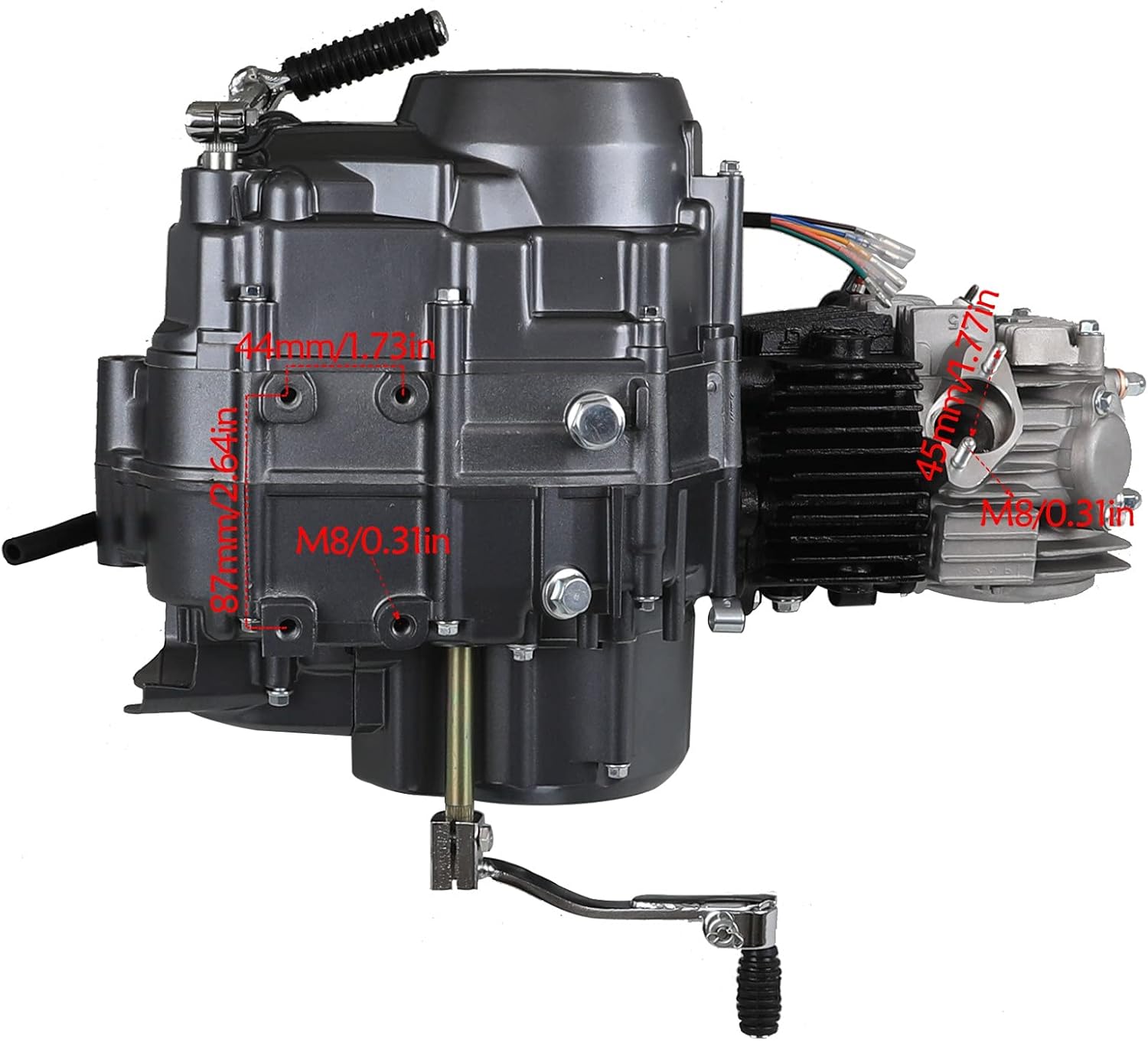

• Lifan 1P54FMI 125cc engine, Gears: N-1-2-3-4, Semi Automatic clutch with 15T 428 chain sprocket, Shaft size: 20mm Top Mount Electric or kick start
• This Motor should fit the following models: Note: This is not a guarantee, if you are unsure, please check with your local dealer. CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail Monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Passport / CS 90 / SL 90 / ZB 50 /
• Widely used in ATV, Quad, Dirt Bikes, Pit Bikes, Trail Bike, Monkey with mounting bolt spacing: 154mm(6 inches)

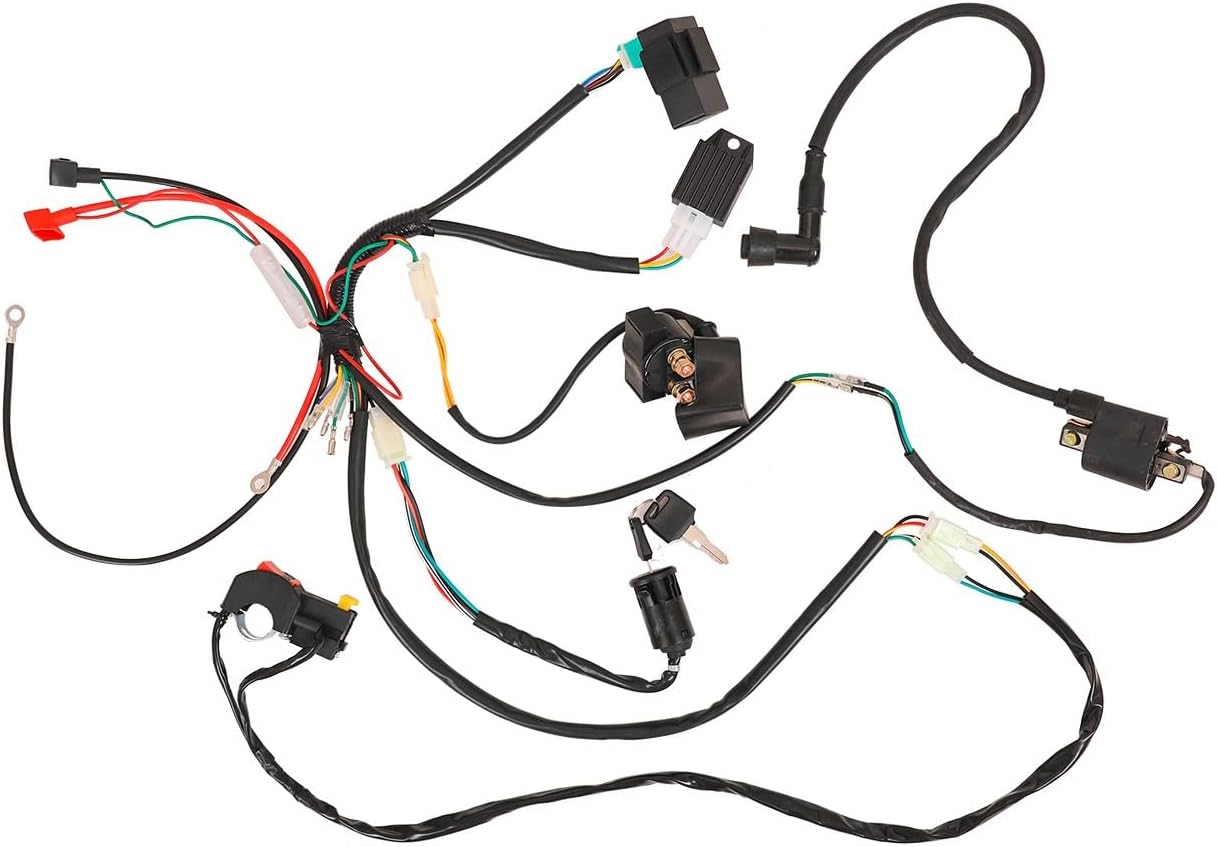

• LISTING INCLUDING 1 x LIFAN 125CC 1P52FMI-C ENGINE 1 x Kick Starter Lever 1 x Gear Shift Lever 1 x Manifold set Package 1x Full Wiring Harness 1x Carburetor 1x Air filter 1x 428 chain 1x throttle grips 1x throttle cable 1x throttle housing 1x 12v battery
